Fruit & Vegetable Wholesale Cold Storage Warehouse

The client needs a large cold storage warehouse in which they could control the temperature and humidity in order to guarantee the freshness of various fruit and vegetables during the storage and delivery.

Project profile
Cold storage warehouse capacity 5000m3 Storage capacity 1500 tons
Storage cargo Vegetables and fruits Cargo handling method Forklift
Height of cold storage warehouse 5m Cargo storage method Tray
Construction time December 2016 Construction period 40 days
Cold storage warehouse classification Client use +rent Building structure Steel structure
Details for Fruit & vegetable wholesale cold storage warehouse
Design temperature 0-8℃

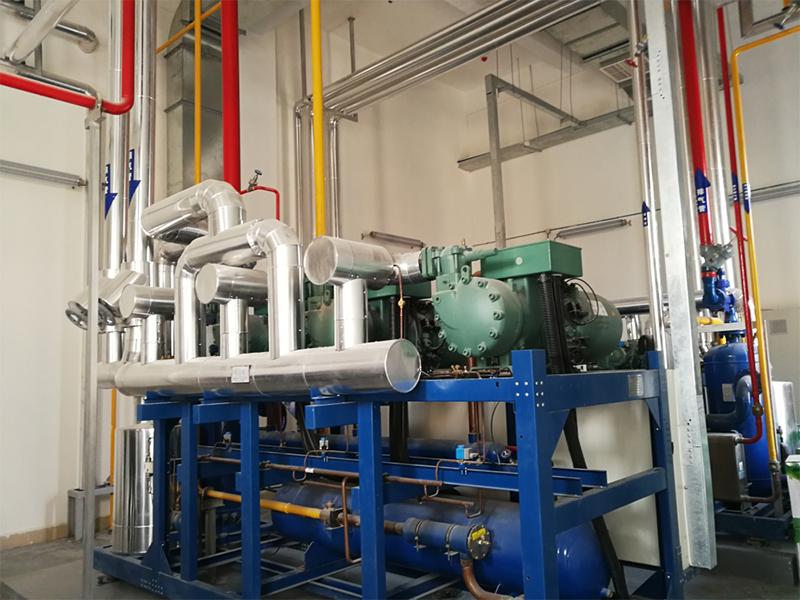

Refrigerating unit Copeland brand parallel connection compressor unit
Voltage 380V-415V, 3phase, 50-60hz
Condensation method Air cooling

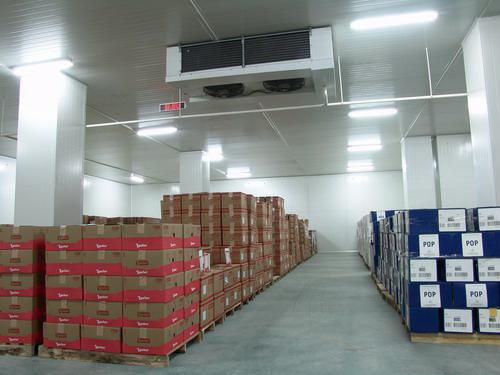

Evaporation method Draught fan
Defrosting method Electric heating defrosting
Liquid feed method Direct expansion liquid feed
Freezing medium Environmentally friendly freezing medium
Thermal insulation material
Cold storage warehouse thermal insulation 100 thickness double-sided colored steel polyurethane insulation board

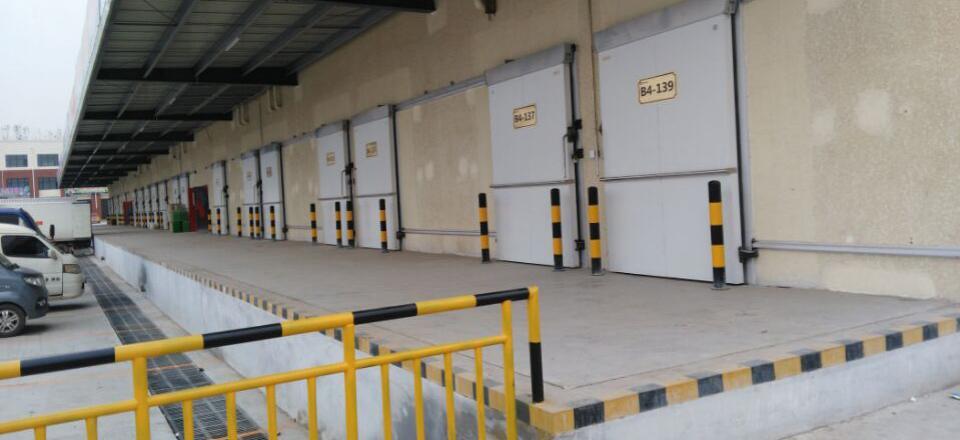

Cold storage warehouse door Double-sided color steel hinge door
