Refrigerated Warehousing for Food Processing Plant
Project profile
Refrigerated warehousingcapacity 7500m2, including 19 rooms Storage capacity 8000 tons
Storage cargo Meat product Cargo handling method Electric forklift truck
Height of refrigerated warehousing 5.5m (clear height) Cargo storage method Storage rack+tray
Construction time June 2017 Construction period 6 months
Refrigerated warehousingclassification Storage Building structure Civil structure
Device information
Design temperature -18℃: Finished products warehouse, 2-8℃: Chill space,10-15℃: Secondary processing room
Refrigerating unit Bitzer brand compressor, total power is 800kw; the unit adopts an automatic start and stop and compression ratio energy adjustment. It alarms in real time to alert the operator and perform an emergency shutdown in case of an error. High pressure protection and low pressure protection of the compressor, oil pressure difference and temperature protection, suction and exhaust temperature protection
Voltage 380V-415V/3 phase/50-60hz

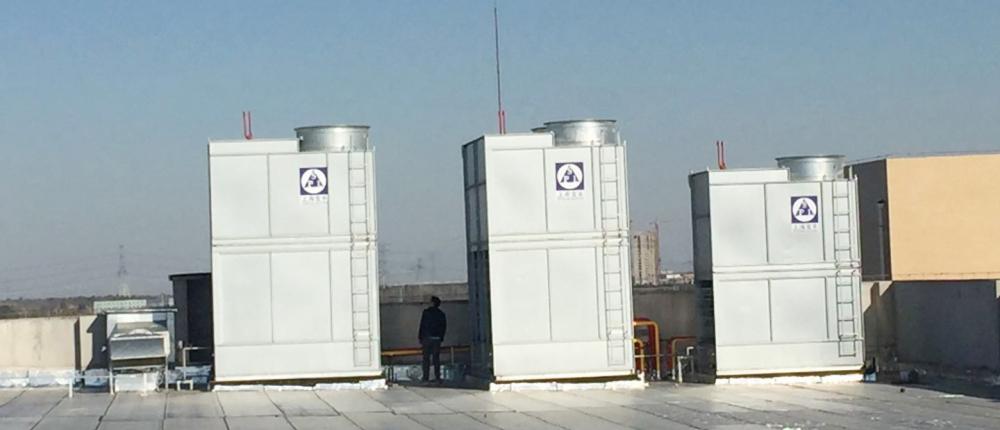

Condensation method Evaporative condenser

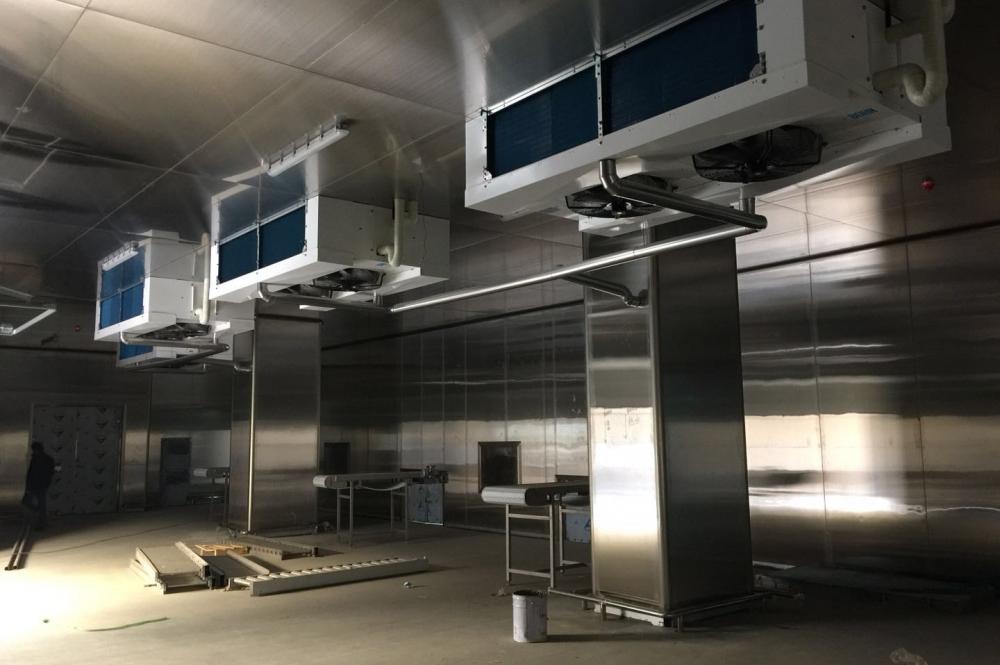

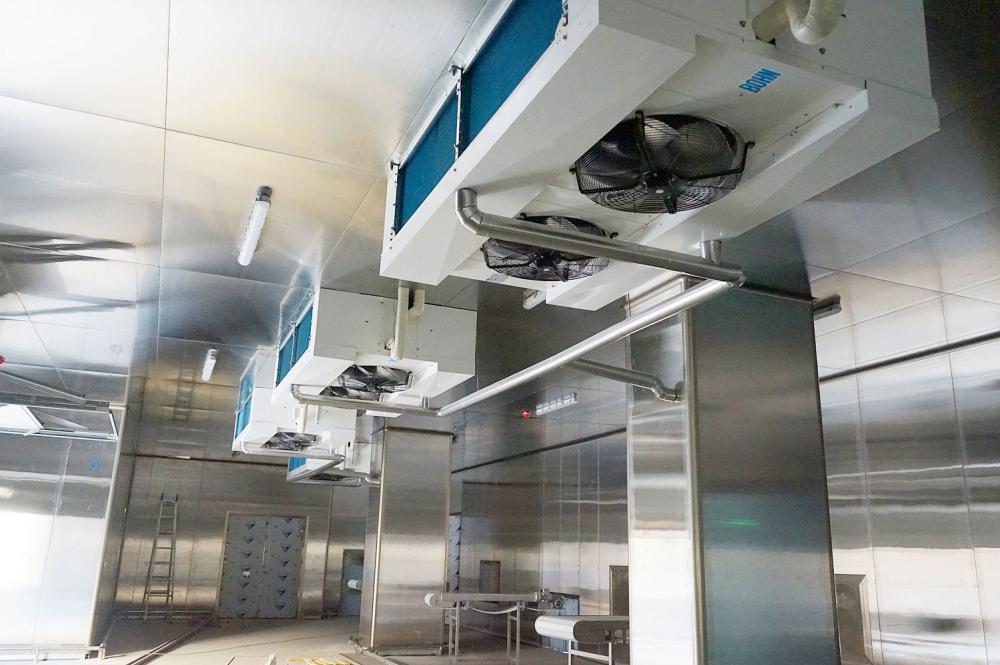

Evaporation method Air cooler
Liquid supply method Direct expansion liquid feed
Freezing medium Environmentally friendly freezing medium

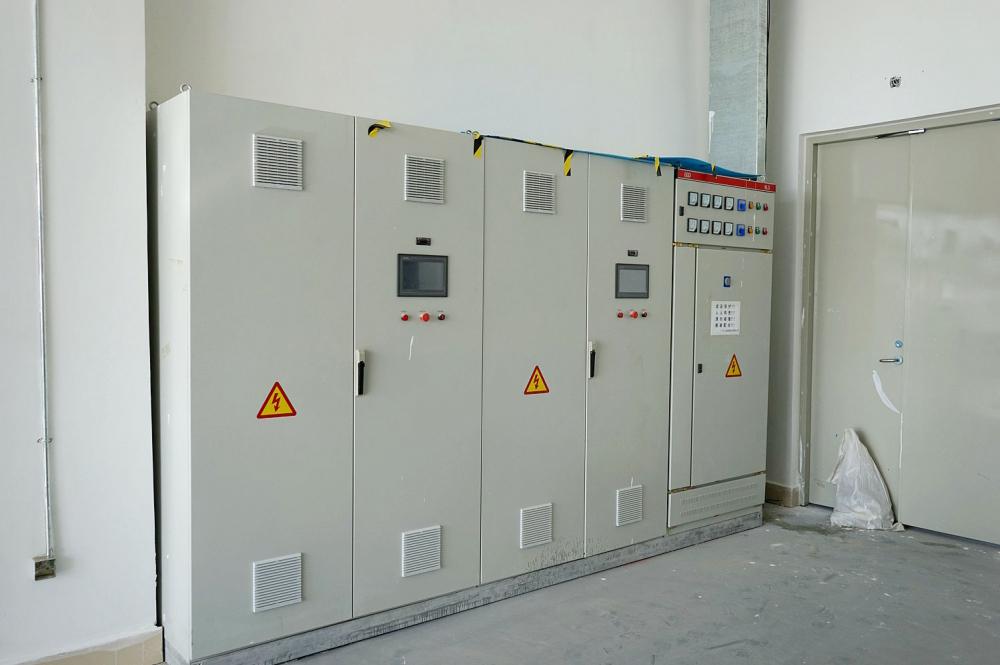

Electronic control method PLC long-distance intelligent control, inspecting cold storage warehouse real-time temperature, draught fan operating state, defrosting state
Thermal insulation material
Refrigerated warehousing thermal insulation PU- 100 PU-200mm thickness Baosteel color steel+Stainlesssteel polyurethane insulation board
Refrigerated warehousing door Stainless steel one /double leaf sliding door
